Product code: CB03

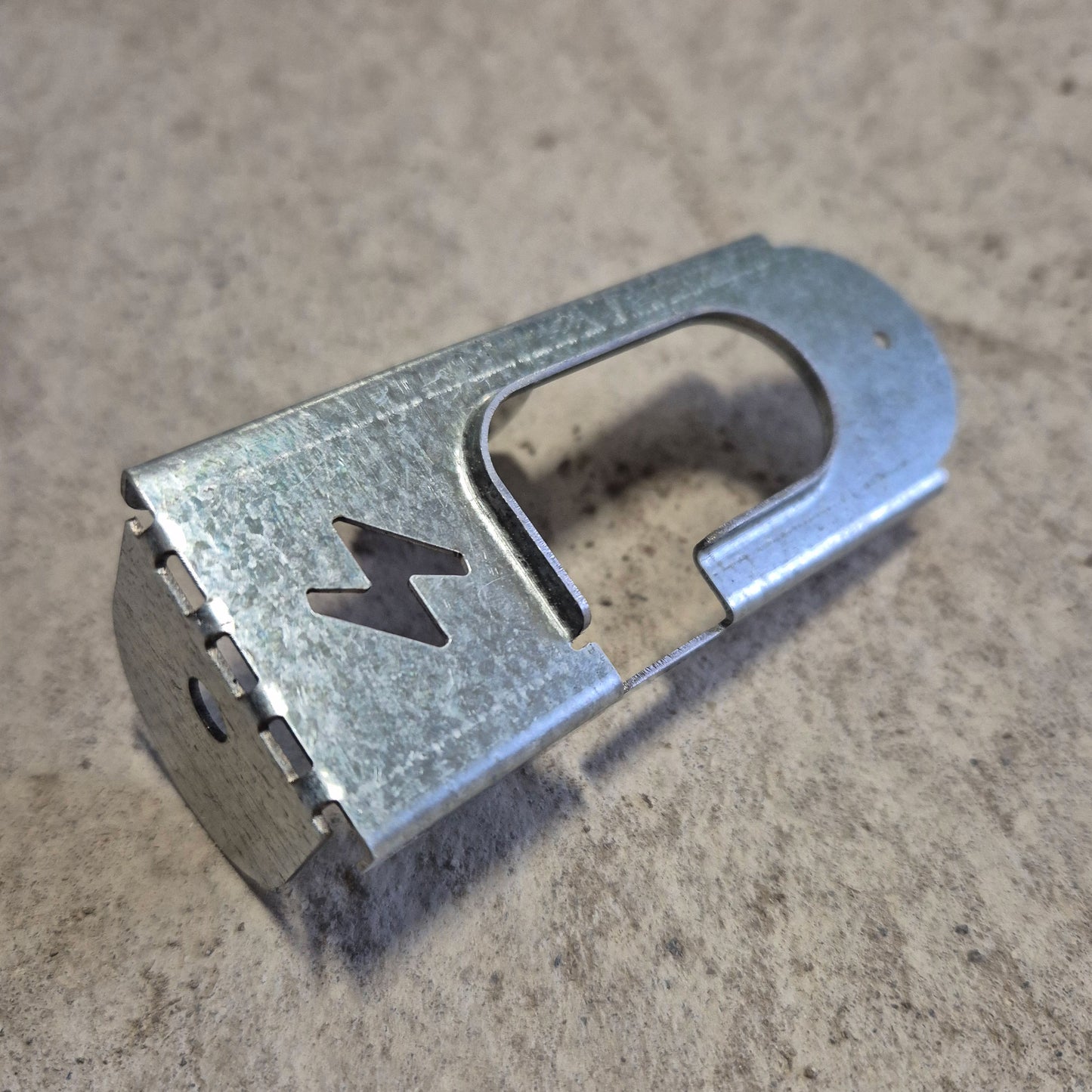

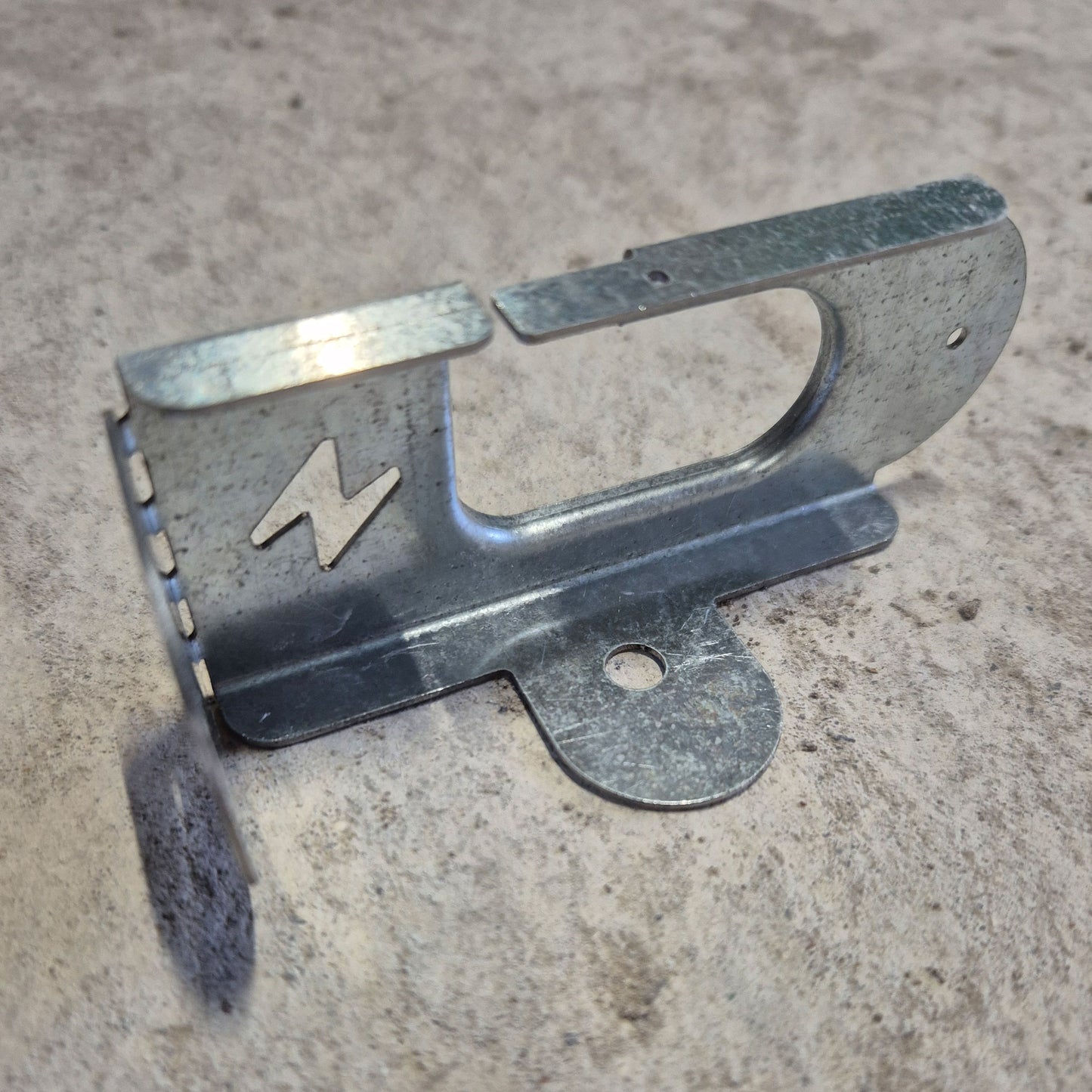

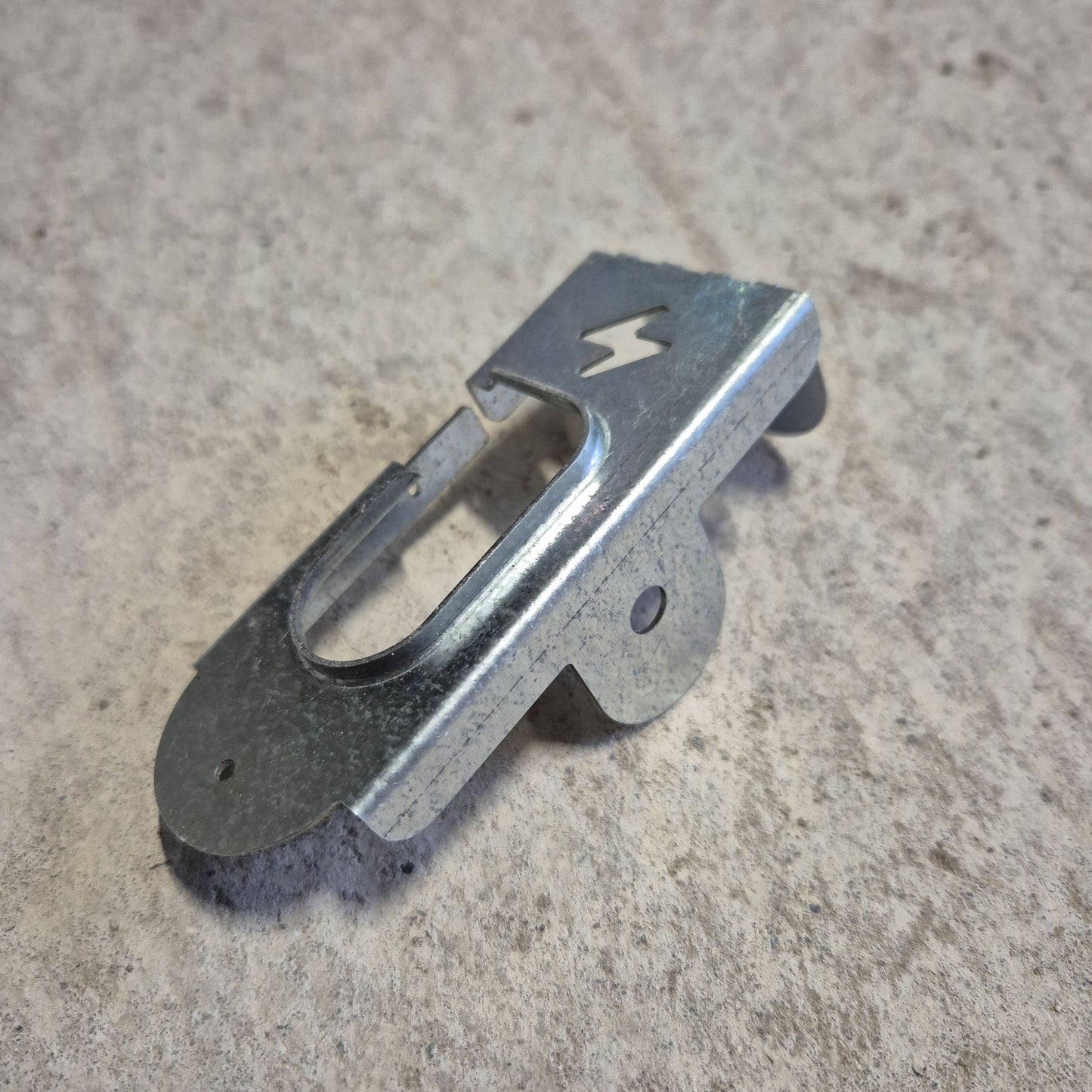

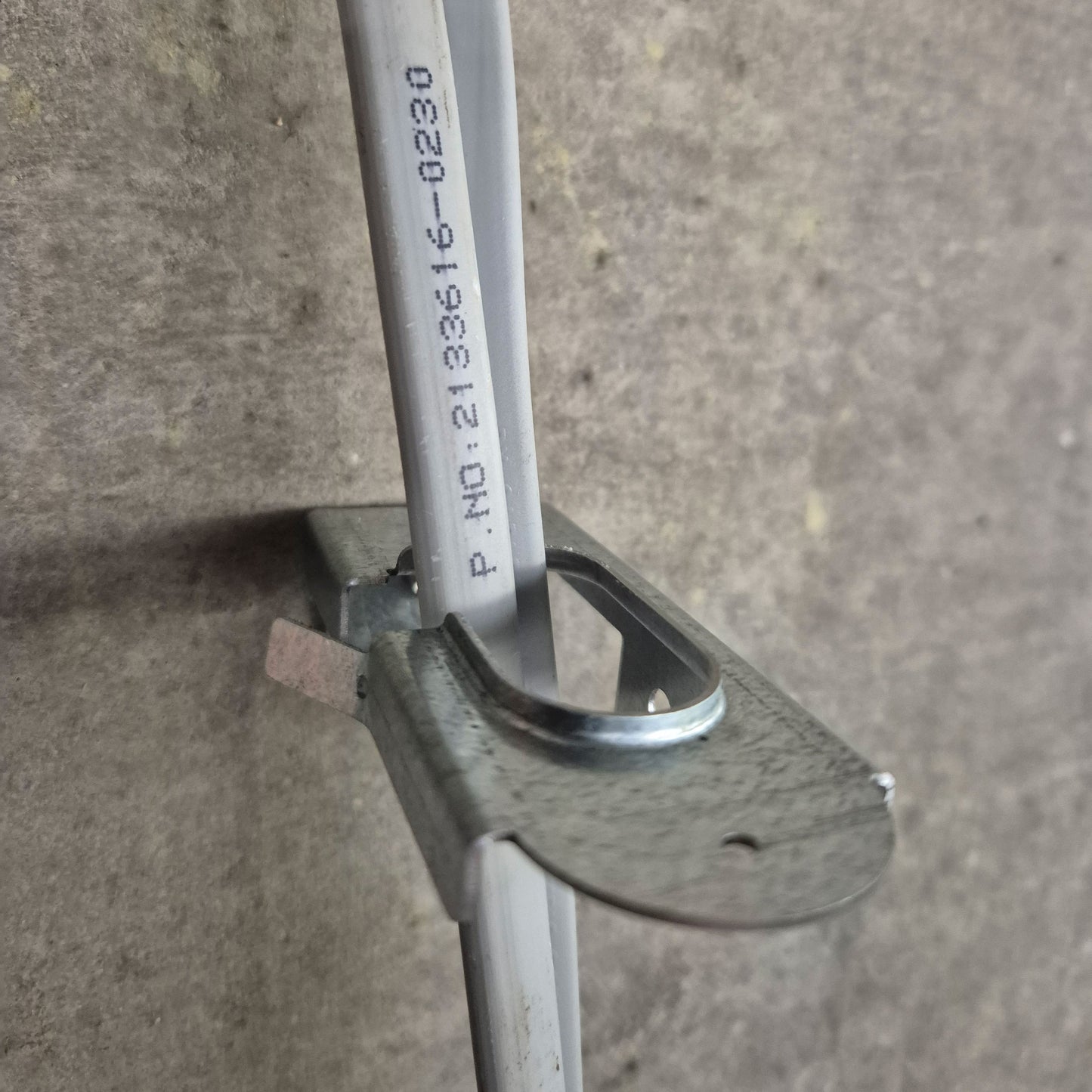

Cableboss CB03 is a pre-formed metal bracket that enables the easy positioning and running of single cables in ceiling voids and walls. Measuring just 90mm in length CB03 is perfectly suited to small void spaces where cable positioning and running is necessary but space is at a premium.

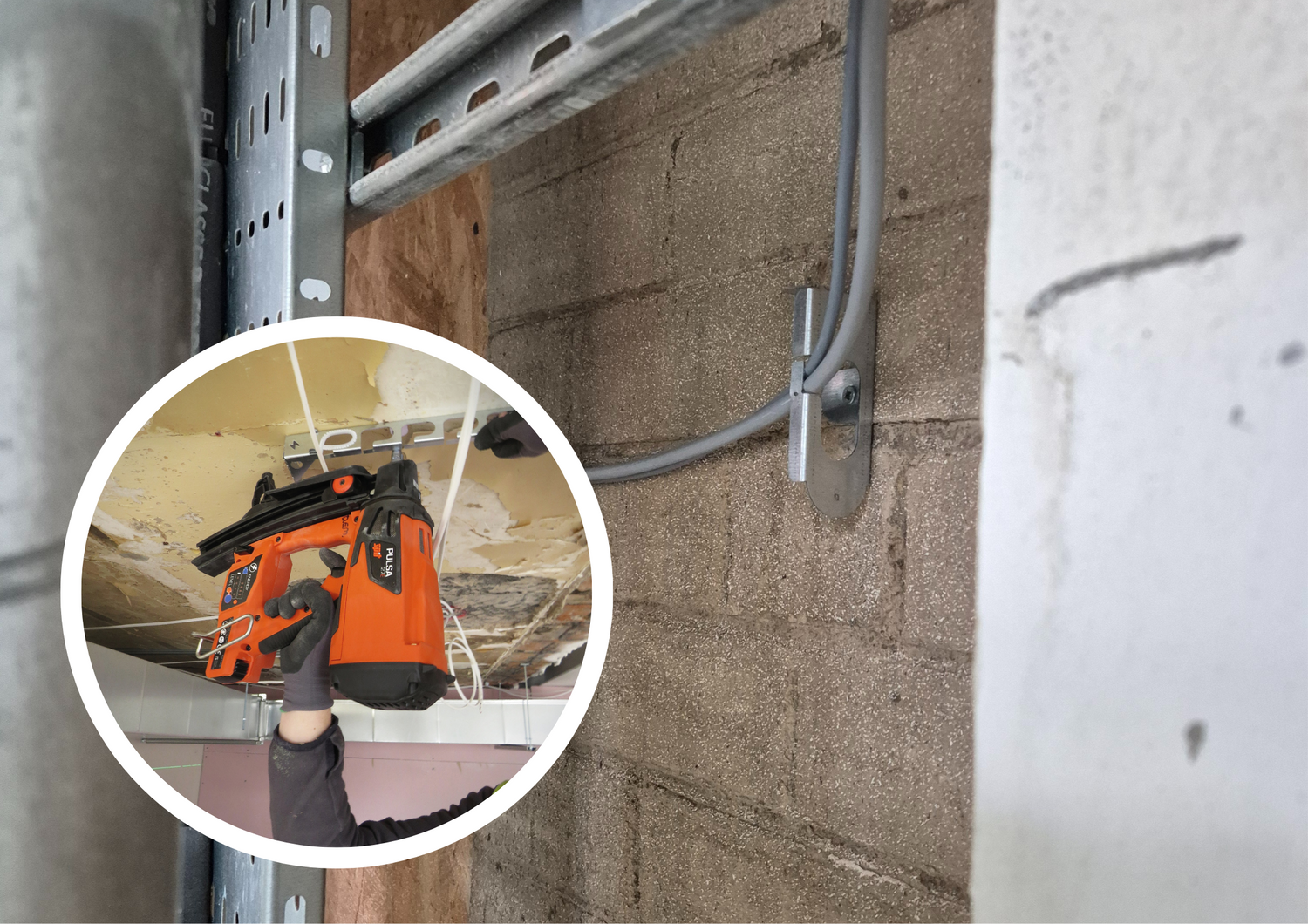

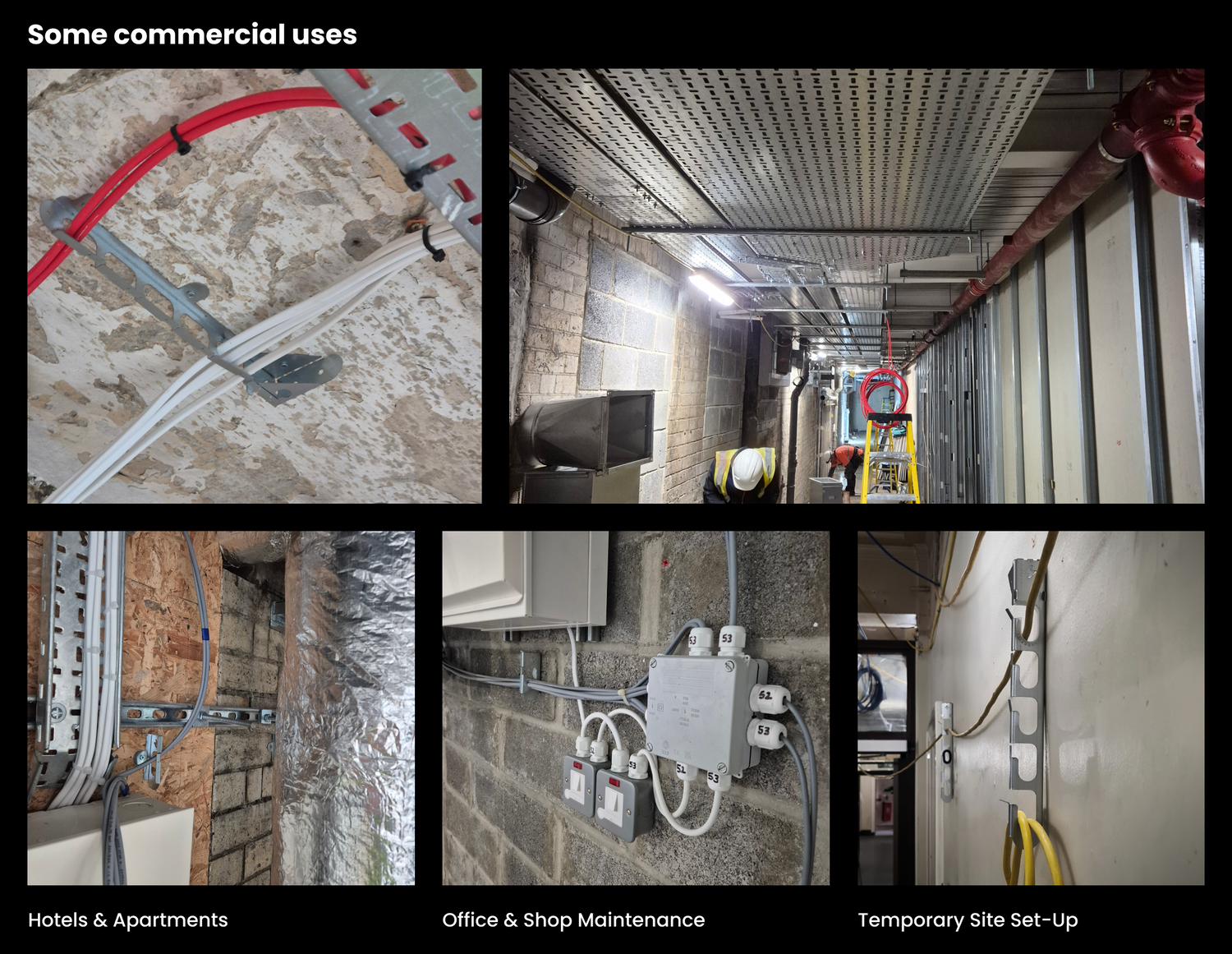

CB03 can be fixed vertically or horizontally to any substrate. Use the pre-drilled 6mm holes to fix with screws or simply nail gun it in! CB03 can be used in various commercial applications for running and positioning cables, such as apartments, hotels, shops, offices and factories.
When running cables just bend to open the “cable gates”, place the cable(s) into the slot and close. CB03 readily accepts standard grommets and strip to ensure your cables are protected.
Combined with our FREE mobile app to record locations, your cables will stay exactly where you left them.
5 simple steps to use cableboss:
1. Fold and form bracket.
2. If required – insert grommet (standard 32mm round) or grommet strip (not provided)
3. Fix by screwing or nailing (fixings not provided)
4. Bend open the “cable gates” or feed the cable through
5. Record location with FREE mobile app
6. Use the app to locate and recover cables for final fix
Product Details
Product Details
Dimensions when formed:
Length - 315mm
Width - 38mm
Height - 77mm

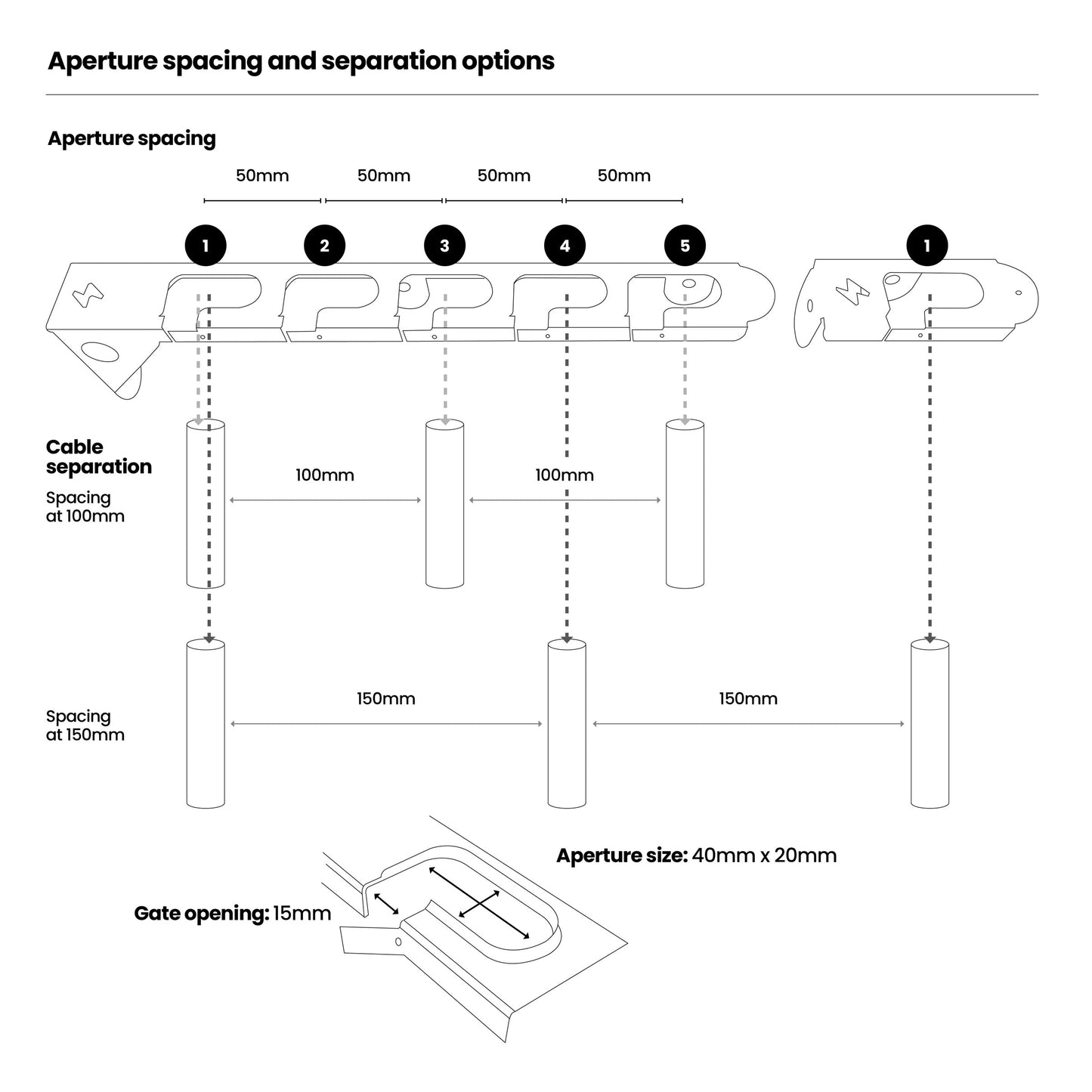

Slot hole sizes - 20mm to 40mm x 33mmSlot accepts - 32mm PVC Round grommet / 1.2mm+
grommet Strip / 20mm external diameter conduit / ducting
Material – 0.9mm Galvanised Steel
Shipping & Returns
Shipping & Returns
Always get express free shipping on orders over £50. Discount automatically applied at checkout.
Orders placed by 1.30PM will be dispatched same day.
Share
Quick and easy cable containment
•Can be fitted vertically or horizontally
•Provides clear and consistent cable separation
•Accepts 32mm grommets, grommet strip & 20mm conduit
•Innovative “cable gates” to speed up cable install
•Fix with screws or concrete nails
•Two sizes – depending on ceiling void depth
Cableboss saves…
- Time: It speeds up installation time
- Money - Reduces labour and material costs Space
- Space: Frees up on-site space, as multiple components are no longer required
